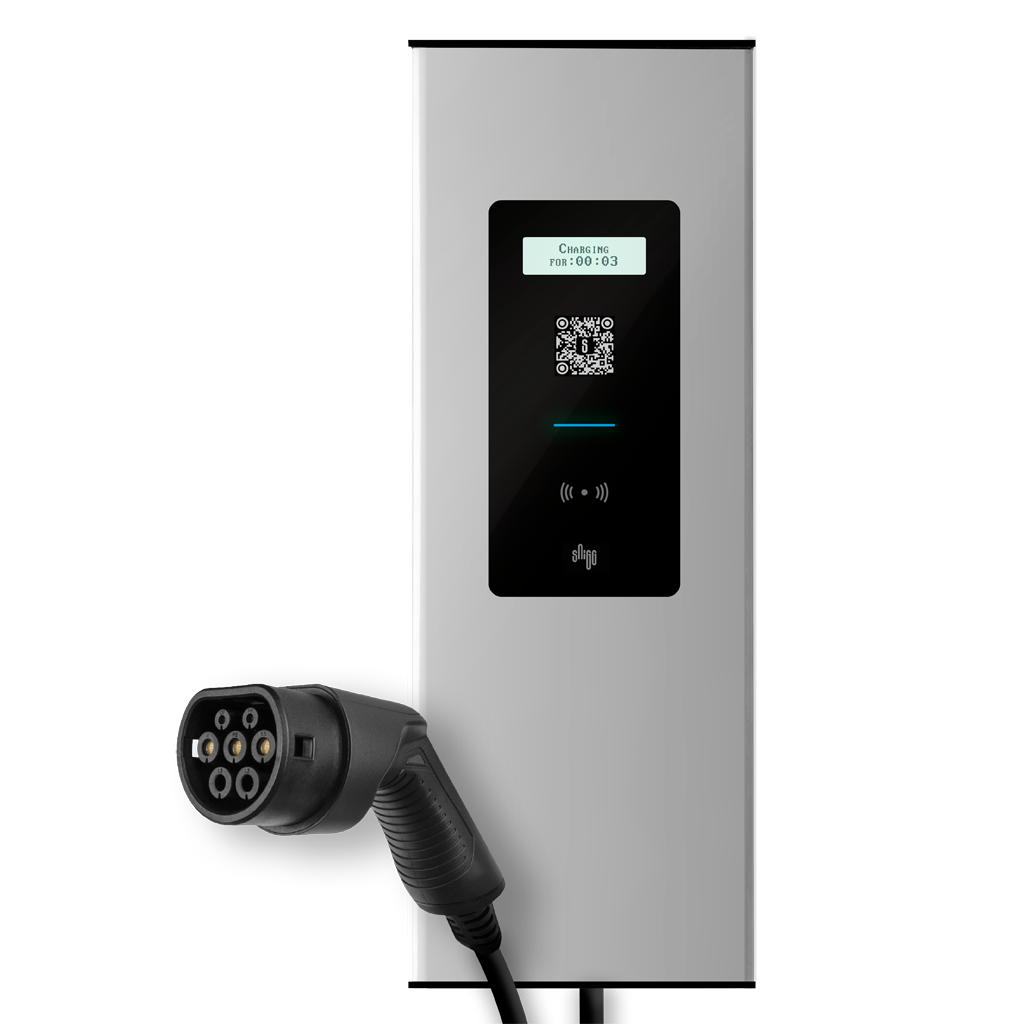

Wall Business Cable
Intelligent charging station wall model with fixed cable Type 2
Adjustable from 3.7 to 22 kW - 240V/380V
Charging cable length 5m (Optional: 7,5m and 10m)
Info display and LED indicator
Charging session activation: with charge card or direct charging
Data communication: LAN, Wifi or 4G (optional)
MID certified kWh meter
Load balancing: in combination with external kWh meter or p1 measurement module
Protection: 6mA/DC integrated, overvoltage, overheating
Housing: anodized aluminum
Protection class: IK10-IP54
Dimensions: 495x156x132 mm
DLM (Dynamic load management)
Communication between multiple charging stations
ISO 15118: Bidirectional charging V2G ready
ISO 15118: Plug & charge and AutoCharge
Linkable with different Hems (SMA, Scneider, QBus)
Back-office communication: OCPP 1.6J
Charge consumption insights: via MySnigg or external back-office provider
Split-billing: via MySnigg or external back-office provider
Public charging: via charge card or QR code (Bancontact, visa ...)
Warranty: 2 years
Designed and manufactured in Belgium
| Vehicle connector: Fixed cable |
